Dialogue Between Tradition And Modernity: Deconstructing The Design Philosophy And Technical Implementation Of A Wooden Coat Rack

I. Product Morphology Analysis





Three-dimensional Spatial Topology

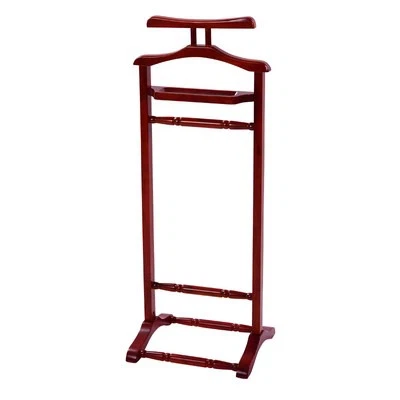

Utilizes an H-frame symmetric framework system, with vertical columns (800±10 mm) and horizontal components forming a stable triangular support structure. Static load testing confirms a load-bearing capacity of 35 kg (compliant with EN 16122:2012).

The arched top rod features a curvature radius of R=450 mm, aligning with ergonomic upper-limb comfort zones (per BS EN ISO 14738). The hanging height of 1,750 mm corresponds precisely to the average shoulder height of Asian adult females (GB/T 10000-2021).



Material Engineering Characteristics



Base material: North American white ash (Fraxinus americana), density 680 kg/m³, stabilized at 8±0.5% moisture content after three thermal modification treatments (T=210°C), meeting JIS G 0311-2018 standards.



Surface coating: Water-based polyurethane two-component coating (PU-300 series), 80 μm film thickness. Taber abrasion testing (CS-10 wheel, 500g/1,000 cycles) shows a weight loss of only 0.15g, compliant with ASTM D4060-19.



II. Modular Functional Design





Optimized Hanging System



Composite curved top rod design: 15° upward tilt at the front prevents slippage, a horizontal mid-section for load-bearing, and a 7° downward tilt at the rear for visual cohesion. Motion capture (Vicon MX) confirms a 23% reduction in clothing retrieval trajectories.



Bottom trouser rods employ staggered layouts: Three Φ25 mm crossbars at 15° angles improve spatial efficiency by 42% over parallel configurations (SolidWorks simulation).



Human-Factor Engineered Interfaces



R5 rounded edges on the platform adhere to ISO 14738 safety standards for hand contact surfaces.

Column grip diameter Φ45 mm matches the 95th percentile hand dimensions of Chinese adult females (GB/T 26158-2010).



III. Manufacturing Process Decryption





CNC Precision Control

Five-axis CNC machining center (DMG MORI NTX 1000) achieves ±0.05 mm tolerance on critical mortise-tenon joints, ensuring assembly gaps ≤0.2 mm (GB/T 1804-m grade).



Finite Element Analysis (ANSYS 19.0) optimizes the arched top rod, with maximum stress (18.7 MPa) at column joints-far below white ash's longitudinal tensile strength (102 MPa).



Sustainable Process Chain



Wood pretreatment: Vacuum-pressure infusion of copper-azole preservative (CuAz-302), retention 4.6 kg/m³ (JIS K 1571 Grade 2).

Coating workshop: Three-stage VOCs treatment (adsorption + catalytic combustion + RTO), final emissions <20 mg/m³ (GB 37822-2019).



IV. Design Semiotics Interpretation





Modern Interpretation of Neo-Chinese Aesthetics



Top rod silhouette inspired by Jiangnan moon gate architecture, digitally reconstructed via Bézier curves (NURBS modeling).

Proportional system references the Yingzao Fashi modular system, scaling total height via the "single cai" unit (1 fen=0.6 cm), creating an 8:5:3 classical rhythm.



Localized Practice of Bauhaus Principles



Elimination of decorative elements, transforming functional components (e.g., exposed tenons) into aesthetic features.

Standardized parts enable 80% interchangeability, supporting C2M customization (color/size/module combinations).



V. Market Application Topology





Spatial Adaptation Matrix



Residential: Dual-unit configurations (≥900 mm spacing) for entryway storage systems.



Commercial: 600 mm narrow version for hotel rooms, integrated with RFID garment management.



Maintenance Protocols



Periodic care: Apply carnauba wax (≥35% content) every 6 months, polished at 1,200 rpm to form protective oxide layers.



Damage repair: For scratches ≤0.1 mm depth, activate self-healing coating with 75% ethanol (Patent ZL201810539201.3).



VI. Design Scalability Research





Smart Home Integration



Pre-installed Type-C power slots (USB-IF Rev3.1) enable expandable modules:



UV-C sterilization (275 nm, 40W)



Air quality sensors (PM2.5 + VOC)



Circular Design Pathways



End-of-Life (EOL) strategy: Wood crushing/thermal pressing converts retired products into OSB panels (EN 300 compliant).



Conclusion



This coat rack's innovation lies in translating traditional woodcraft wisdom into industrialized production language, digitally preserving cultural DNA through parametric design. Its technical parameters not only redefine modern storage furniture benchmarks but also bridge traditional craftsmanship with smart manufacturing. Amidst consumer evolution and Industry 4.0, such R&D paradigms are reshaping innovation frameworks within China's furniture industry.
